Overview
Work Order Types define how Work Orders behave in LLumin CMMS+. Each Type controls priority, approval rules, Recurring Work availability, and optional links such as procedures. After a Work Order Type is created, additional configuration options become available on the Work Order Type master.
Create a Work Order Type
-

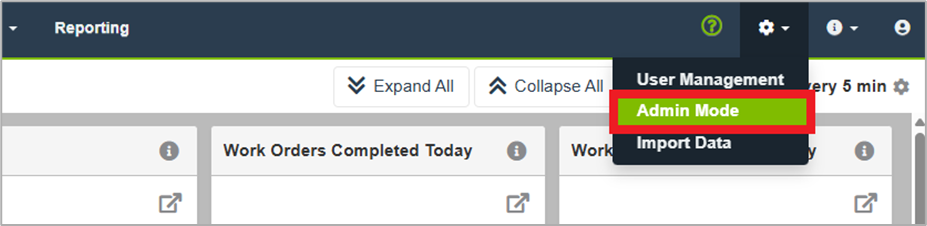

Select the Gear icon in the top navigation bar, and then select Admin Mode.
-

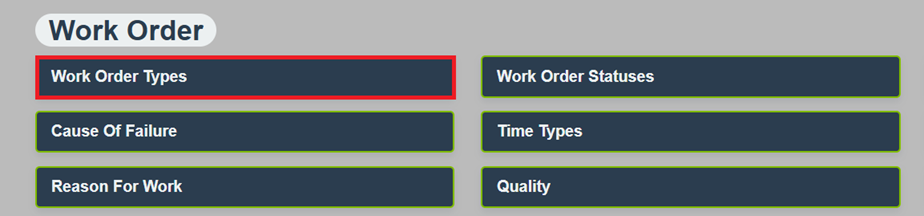

Select Asset & Work Management > Work Order Types.
-

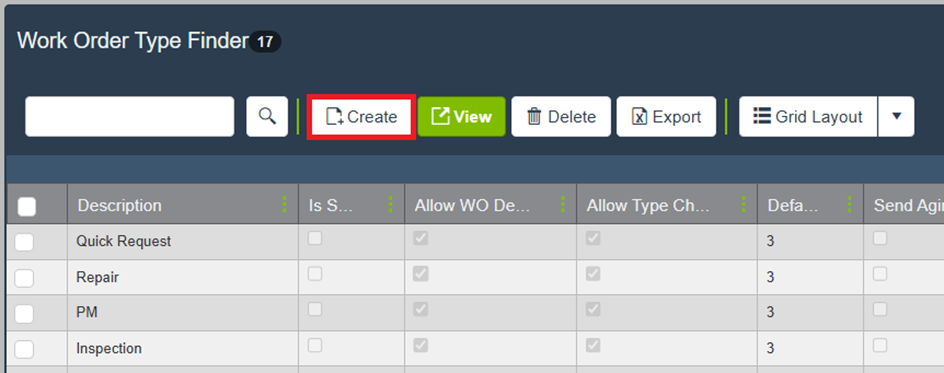

In the Work Order Type Finder, select Create.
-

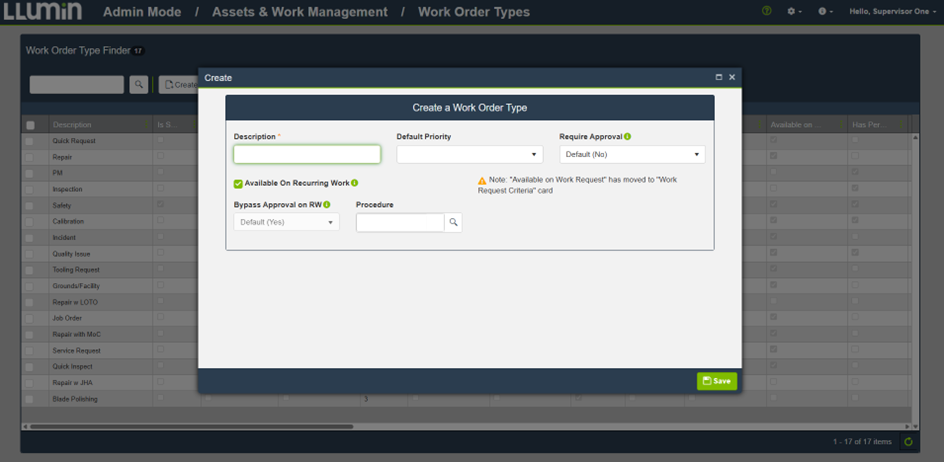

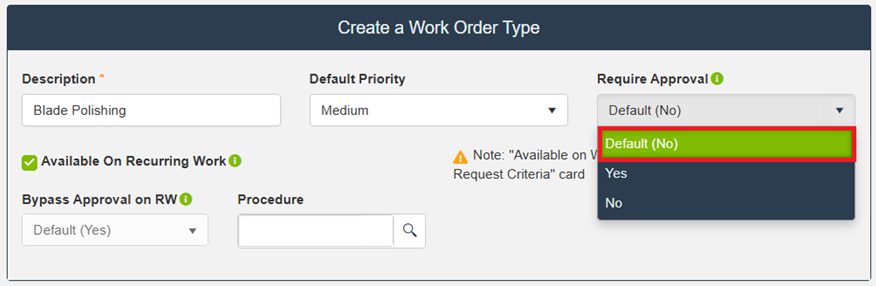

The Create Work Order Type window opens.
-

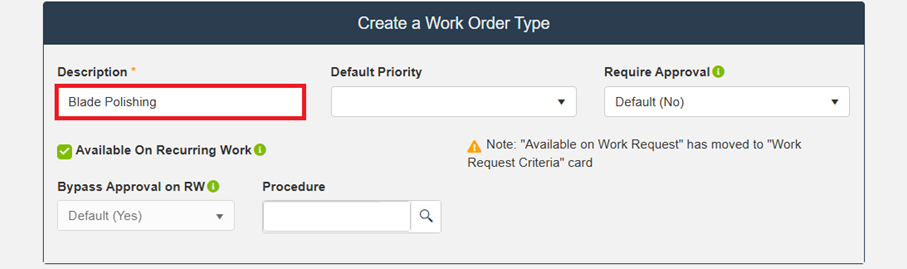

In Description*, enter a name for the Work Order Type. This field is required.
-

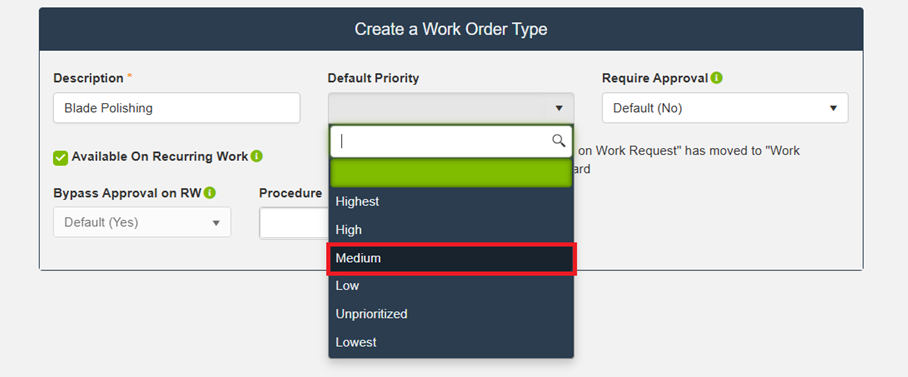

In Default Priority, select one of the following: Highest, High, Medium, Low, Lowest, or Unprioritized.
- Under Require Approval, select one of the following:
- Default: Use the global approval rule.
- Yes: Require approval for this Type.
-
No: Do not require approval.
-

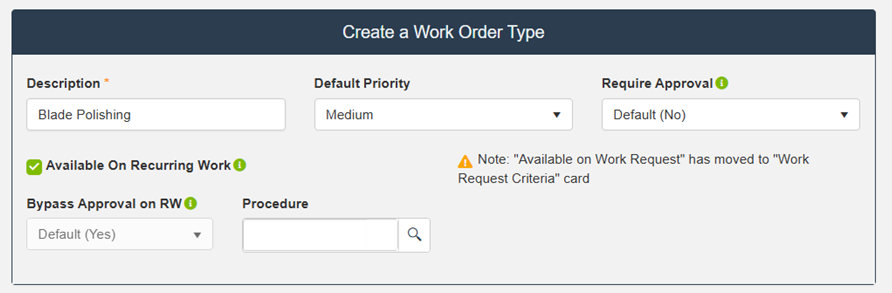

To allow this Type to be used with Recurring Work, select Available on Recurring Work. Clear the checkbox to prevent this Type from being selected in Recurring Work setup.
- (Optional) In Procedure, select a procedure to associate with this Work Order Type.
- Select Save. The Work Order Type is created and additional configuration cards are now available.
Continue configuring the Work Order Type

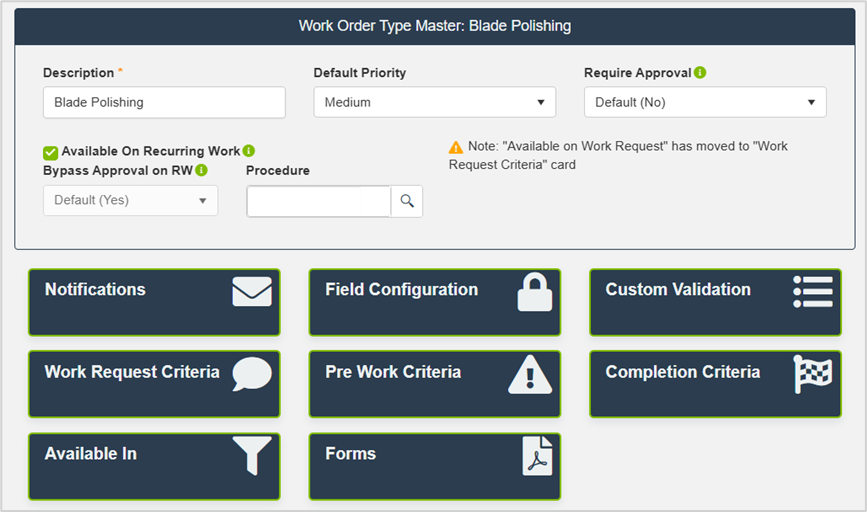

After saving the Type, return to the Work Order Type Finder. Select the Type you created, and then select View. The Work Order Type master opens and displays several configuration cards. Each card modifies a different aspect of the Work Order Type.
You can configure:
- Notifications
- Field Configuration
- User Defined Fields (UDFs)
- Custom Validation
- Work Request Criteria
- Pre-Work Criteria
- Completion Criteria
- Available In (locations)
-
Forms
Each configuration area is managed separately and may have its own required steps.
Next steps: Work Order Type configuration articles
Use the following articles to complete additional configuration for the Work Order Type.
| Configuration area | Article |
|---|---|
| Notifications | How to Configure Notifications for a Work Order Type |
| Field Configuration | How to Configure Field Settings for a Work Order Type |
| Custom Validation | How to Add Custom Validation to a Work Order Type |
| Work Request Criteria | How to Configure Work Request Criteria for a Work Order Type |
| Pre-Work Criteria | How to Configure Pre-Work Criteria for a Work Order Type |
| Completion Criteria | How to Configure Completion Criteria for a Work Order Type |
| Forms | How to Attach Files to a Work Order Type |
